Optimal 2H rf Pulses and 2H–13C Cross-Polarization Methods for Solid-State 2H MAS NMR of Perdeuterated Proteins

J. Phys. Chem. Letters, 2011, DOI: 10.1021/jz200511b, 2 (11), pp 1289–1294 published on 12.05.2011

J. Phys. Chem. Letters, online article

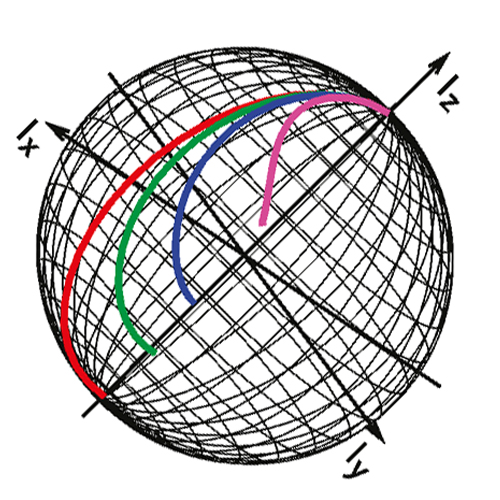

We present a novel concept for rf pulses and optimal control designed cross-polarization experiments for quadrupolar nuclei. The methods are demonstrated for 2H CP-MAS and 2H multiple-pulse NMR of perdeuterated proteins, for which sensitivity enhancements up to an order of magnitude are presented relative to commonly used approaches. The so-called RESPIRATION rf pulses combines the concept of short broad-band pulses with generation of pulses with large flip angles through distribution of the rf pulse over several rotor echoes. This lead to close-to-ideal rf pulses, facilitating implementation of experiments relying on the ability to realize high-performance 90 and 180° pulses, as, for example, in refocused INEPT and double-to-single quantum coherence experiments, or just pulses that provide a true representation of the quadrupolar powder pattern to extract information about the structure or dynamics. The optimal control 2H → 13C CP-MAS method demonstrates transfer efficiencies up to around 85% while being extremely robust toward rf inhomogeneity and resonance offsets.
